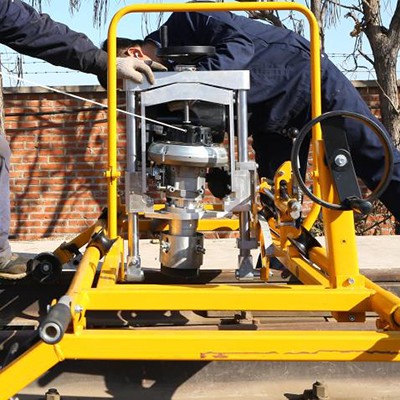

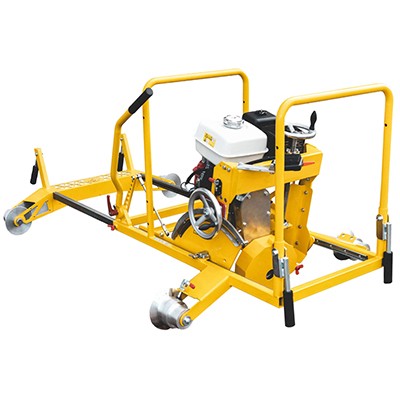

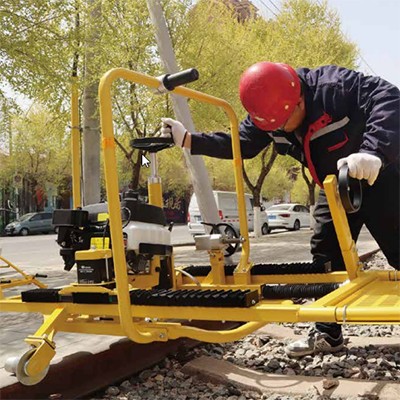

NCZ-5.0 Vertical grinding machine

Hand push:Walking mode
Grinding position adjustment mode:Hand wheel spiral adjustment
Engine power:5.0kw/4000rpm
Engine model:TQ2P73F
The whole machine fuel consumption rate:≤1.5L/h

Product Description:

Applying Scope

The product is a small railway maintenance machinery, mainly used for railway appearance profile and internal fat side long distance grinding; When five to six units are used in groups, the grinding efficiency can be greatly improved.

Features

· The use of electric injection can tilt the engine,strong power, simple start, can be applied to different positions for a long time grinding.

· Large range of tilt swing Angle, convenient mediation.

· Precision machine tool guide slide block with the right and left movement accurate and rapid.

· Rapid and reliable lifting operation, comfortable feel.

Technical Parameter

Walking modeHand push
Grinding position adjustment modeHand wheel spiral adjustment
Engine power

5.0kw/4000rpm

Engine modelTQ2P73F
The whole machine fuel consumption rate≤1.5L/h
Engine displacement209ml
Fuel tank capacity2.0L
Turning 90° continuous polishing time≥2h
Noise value≤100dB
Insulation between the body and rail> 500MQ
Grinding wheel specifications125*60-M20
Lifting stroke of grinding wheel180mm
Grinding wheel swing Angle-20°~ 80°
Left and right movement380mm
