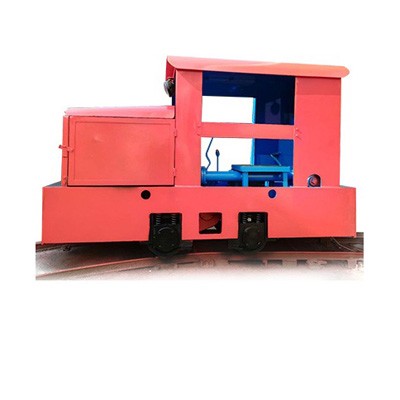

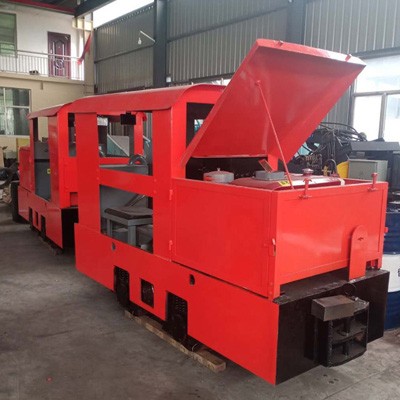

2T 3T 5T Diesel locomotive

application: mining transportation
EX. available.

Product Description:


Application: Mainly used in mining transportation vehicle .

Feature:

1. Drive easily and flexible, working comfortable, low cost,save work labour.

2.The locomotive is equipped with waste gas cleaning system, keep good and clean working environment.


Item

CCH2.0/600

CCG-3.0/600

CCG-5.0/600

Weight

2T

3T

5T

Pulling Tonnage

20T

25 T

40T

Greatest Traction Force

4.5KN

≥5.6KN

≥9KN

Speed  (no-loadkm/h)

Forward: 3.0  7  10

Backward:3.0  7  10

Forward: 3.0  7  10

Backward:3.0  7  10

Forward: 3.0  7  10

Backward:3.0 7  10

Max Speed

10km/h

10km/h

10km/h

Min.Railway Orbit

5m

5m

6m

Wheelbase

600mm

736mm

865mm

Gauge mm

600mm

600mm

600mm

Traction Height

225mm  320mm

225mm  320mm

225mm  320mm

Diesel Engine Power

11kw

11kw

13kw

Rotating Speed

2200r/min

2200r/min

2200r/min

Max torque

64.3N.m

64.3N.m

87.64N.m

Dimension (L*W*H)

2000*950*1040mm

2460*950*1600mm

3300*1000*1600mm
