Rated power:5.1kW Effective stroke of grinding wheel:280mm Grinding wheel feed accuracy:0.86mm Net weight:117kg Overall dimension:2100×1120×1030mm
The machine has novel structure, light body, easy operation, easy maintenance, high grinding efficiency and good quality. It can fully meet the requirements of grinding all kinds of points and points in our country.
Turnout is an indispensable and important switching equipment on railway line. Due to rolling and impact of rolling stock, each part often produces a flash, resulting in the change of the geometric size of each part and affecting the driving safety. In order to maintain the standard geometric size of each part of the turnout in operation, the defects such as flash must be eliminated. However, grinding with hand grinding wheel will cause defects such as irregularity and discontinuity.

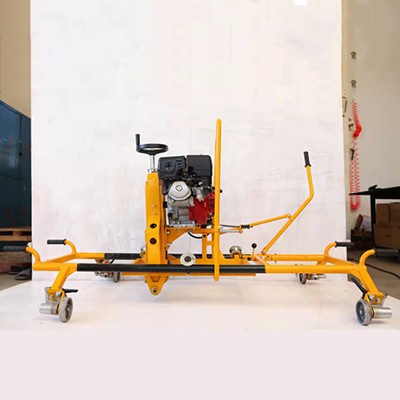

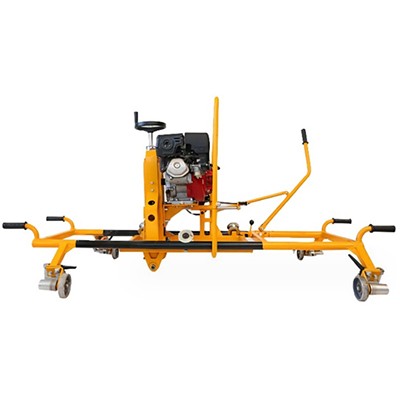

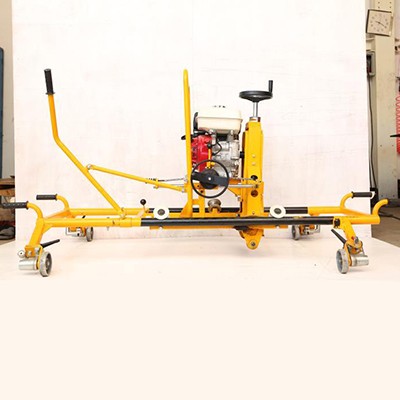

The NCM-5.1 internal combustion switch grinding machine developed by our company, drawing on the experience at home and abroad, can continuously polish all parts of the switch. This machine is a new and efficient grinding machine, which is the first in the
road.
Engine | Honda GX270, single cylinder air cooled four stroke |
Rated power | 5.1kW |
Wheel rotation | ≥3600r/min |
Effective stroke of grinding wheel | ≥80mm |
Grinding wheel feed accuracy | 0.86mm |
Maximum swing Angle of the grinding wheel | ≥30° |
Net weight | 117kg |
Overall dimension | 2100×1120×1030mm |
