The machine weight：73±1kg Walking mode：Hand push Grinding position adjustment mode：Hand wheel spiral adjustment Engine power：5kw/3800rpm Carburetor oil supply mode：Electric injection

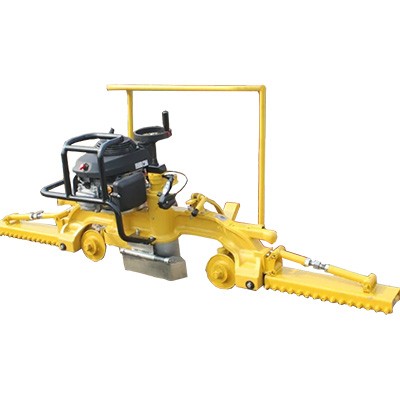

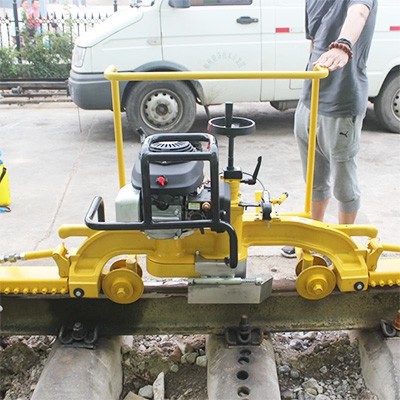

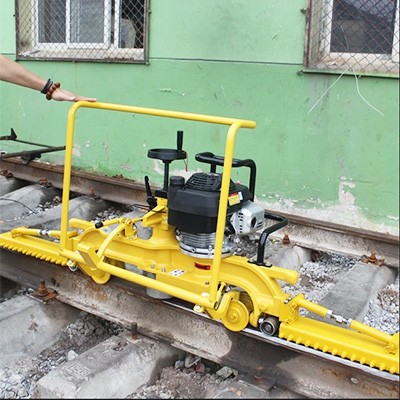

The machine is composed of armrest, grinding head, adjusting mechanism, bottom beam, copying wheel, auxiliary side wheel and gasoline engine.
The engine drives the small belt wheel to rotate and the grinding head to rotate through the belt drive, which produces grinding effect on the rail. Adjusting the grinding position by rotating the hand wheel to control the lifting rod; The position of the sander is fixed by the locking mechanism between the hand handle and the bottom beam, so as to obtain different grinding angles.
| The machine weight | 73±1kg |
| Walking mode | Hand push |
| Grinding position adjustment mode | Hand wheel spiral adjustment |
| Engine power | 5kw/3800rpm |
| Carburetor oil supply mode | Electric injection |
| Grinding wheel specifications | 125*70-4*M8 |
| Grinding wheel feed stroke | 60mm |
| Copy wheel base | 1005±4mm |
| Engine model | 1P73F |
| The whole machine fuel consumption rate | ≤1.5L/h |
| Engine displacement | 209ml |
| Fuel tank capacity | 2.0L |
| Turning 90° continuous polishing time | ≥2h |
| Noise value | ≤100dB |
| Insulation between the body and rail | >500MQ |
| Is there a side grinding auxiliary support | Yes |
