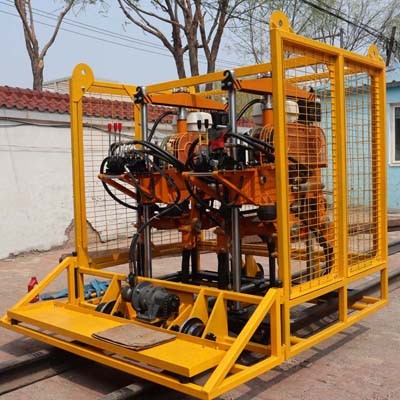

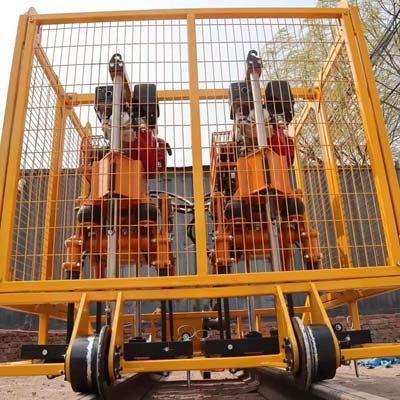

self propelled type /remote controller type optional original Honda Petrol engine Rail gauge: 600 760 900 1435mm

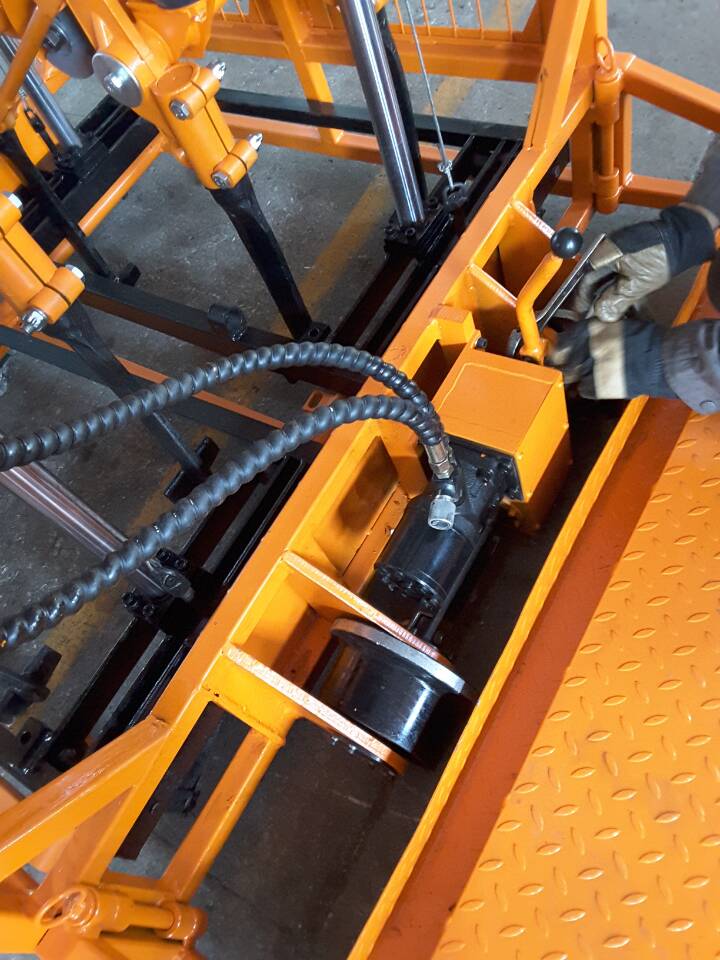

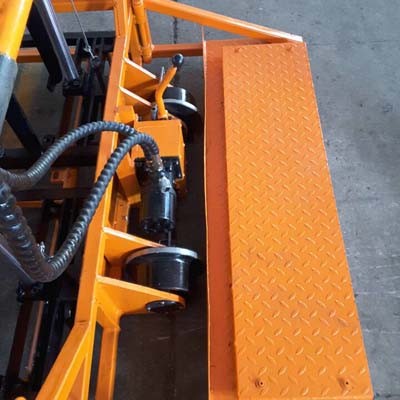

Its basic structure and working principle reserves the original advantages, that is of double guide pillar frame and single cylinder lifting mode. it’s able to to operate on II type concrete sleeper and III type concrete sleeper, and on various concrete sleeper and rail track. Its main technical performance is better than the old type. It’s suitable for tamping operation on various rail and sleeper track after the overhaul and medium maintenance ballast cleaning operation, and also suitable for tamping operation on the new track ballast bed. Now,joined the function of automatic hydraulic travel system,it can achieve non-artificial push forward or backward. This machine has the features of high quality performance, reasonable structure, safe and reliable operating capability and high working efficiency, which can satisfy the requirement of ballast tamping operation.
Engine | Name | GX390 Honda Petrol Engine |
Power | 9.5kw | |
RPM | 3600 | |
Hydraulic System Working Pressure | 5~6MPa
| |
Vibrating Frequency | 66.7Hz | |
Vibrating Force: | 22kN | |
Max. Inset Force | 16kN | |
Clamping Force | 6.5kN×2 | |
Inserting Depth | <110mm±10mm | |
Efficiency(group/h) | ≥260piece | |
Net Weight: | 422kg /pcs. | |
Dimension: | 1390mm×750mm×1600mm | |
Operating Form: | (1) Unilateral or bilateral off-track. Suitable for multiple track or single track with wider shoulder. | |
(2) Bilateral next two as a group, suitable for single line track a narrow area. | ||
Travel Frame Gauge : | 600/1435 mm ( as per customer request) |
