Driving force:GX390 petrol engine Power:9.5kw Rpm:3600RPM Hydraulic system pressure:5~6Mpa Vibrating frequecy:66.7Hz Exciting force:22kn Max underthrust force:16kn Clamping-squeezing force:6.5knx2

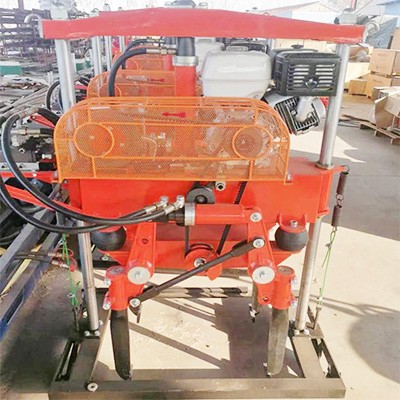

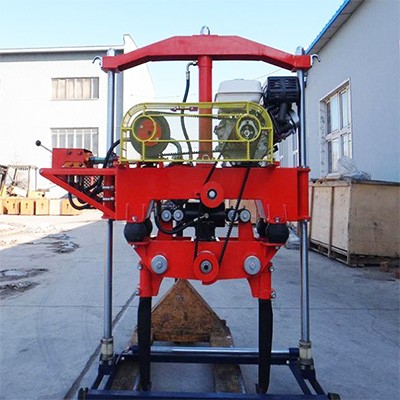

Collecting endusers'experience at home and abroad, adopting new material and technology, this type of machine is our upgrading product. Its basic structure and working principle reserves the original advantages, that is of double guide pillar frame and single cylinder lifting mode. it's able to to operate on Il type concrete sleeper and Il type concrete sleeper, and on various concrete sleeper and rail track. Its main technical performance is better than the old type. It's suitable for tamping operation on various rail and sleeper track after the overhaul and medium maintenance ballast deaning operation, and also suitable for tamping operation on the new track ballast bed. Now, joined the function of automatic hydraulic travel, can achieve non-artificial push forward or backward. This machine has the features of high quality perforn ance, reasonable structure, safe and reliable operating capability and high working efficiency, which can satisfy the requirement of ballast tamping operation.
Driving force | GX390 petrol engine |
Power | 9.5kw |
Rpm | 3600RPM |
Hydraulic system pressure | 5~6Mpa |
Vibrating frequecy | 66.7Hz |
Exciting force | 22kn |
Max underthrust force | 16kn |
Clamping-squeezing force | 6.5knx2 |
Inserting depth(Underneath the sleeper) | 110mm±10mm |
Production efficiency | ≥260 sticks/(group/h) |
Net weight | 455kg |
Dimention | 1300mm×750mm×1600m |

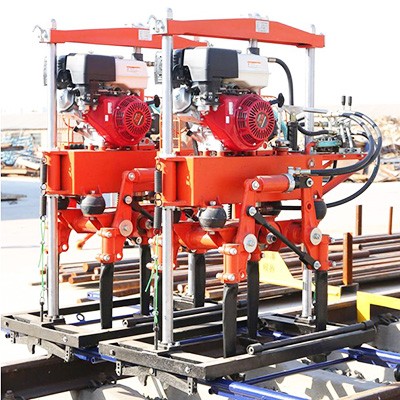

Operating form | Unilateral ofF-track, two sets as one group, suitable for multiple track or single track with wider shoulder. Bilateral off-track, two sets as one group, suitable for single track with narrower shoulder. |
Traveling frame gaug | 1435mm(custom tailored according to the endusers' requirment.) |
