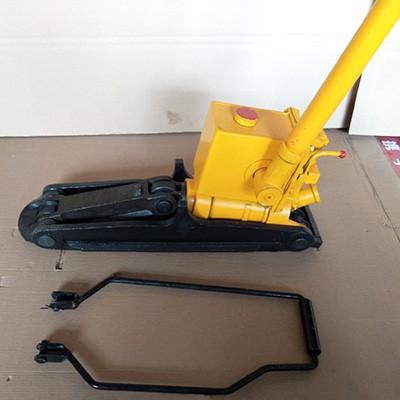

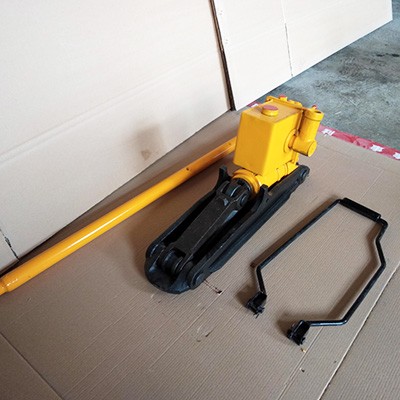

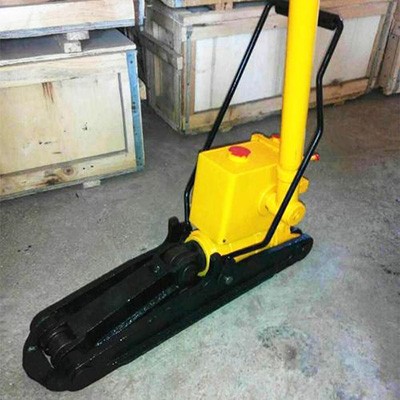

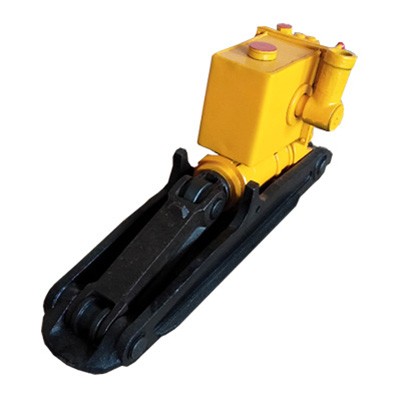

YB-200 hydraulic track shifter

Rated track pulling force:135kN
Maximum track lining quantity:80mm
System pressure rating:55Mpa
No load efficiency:4mm/once
Hand shank operating moment:560N.m

Product Description:

Applying Scope

Hydraulic lane shifter is suitable for all types of rail lines to start and dial the operation, it has a novel structure, easy to operate, safe and reliable, do not invade the bound. high work efficiency. complete machine in light weight other characteristics。 It is also suitable for the operation of turning the switch, it is an essential tool for railway works department to maintain the line。

Technical Parameter

Rated track pulling force

135kN

Maximum track lining quantity80kN
System pressure rating55Mpa
No load efficiency

4mm/once

Hand shank operating moment560N.m
Complete machine quality

27kg

Exterior size

530×150×251mm
