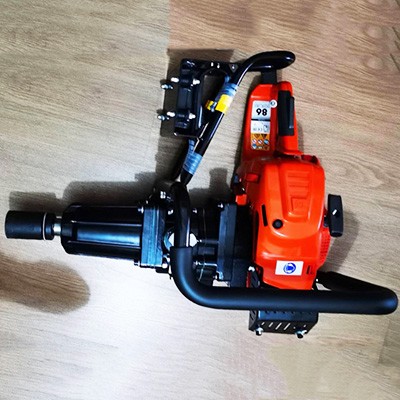

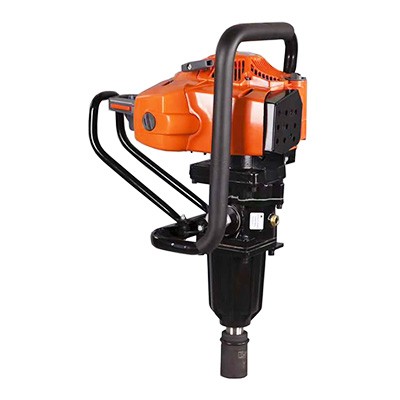

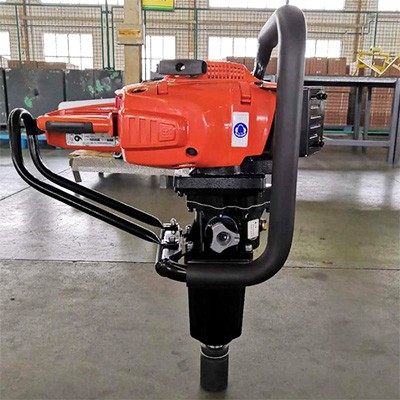

NLB-1200 Internal combustion bolt wrench

Machine working speed:700r/min
Gasoline engine idle speed:2800±200 r/min
Fuel tank capacity:0.65L
Impact system oil:40# oil
Overall size:680×465×300mm

Product Description:

Applying Scope

It is suitable for loosening and fastening various types of concrete sleeper bolts in railway maintenance, especially for installing or disassembling sleeper bolts without external power supply or external pneumatic power. By replacing different sleeves, the machine can also be used to crack or tighten other sleeper bolts.

Features

· The machine uses Husqvarna 555 gasoline engine as the power, strong power, high efficiency;

· Compact and reasonable structure, beautiful appearance, easy to carry, comfortable operation;

· Safe use, easy maintenance.

Technical Parameter

Engine modelHusqvarna 555
Engine type

Single cylinder, air-cooled, two-stroke, AutoTune (electronic automatic adjustment, to ensure that the

machine can be suitable for various actualconditions, such as different weather, altitude, gasoline and

two-stroke oil type)

Discharge volume59.8
Maximum output power3.1/9600kW/r/min
Oil consumption≤438g/kW·h
Silencer installation structure

Embedded installation structure, reduce vibration shear force, damage rate is reduced, but also to

minimize the nois

Cylinder cover fastening methodBuckle installation, simple structure, easy maintenance and disassembly, do not need tools
Working weight19.5kg
Square tenon size25.4mm
Tightening torque≥1200N.m
Loose torque1800N.m
Machine working speed700r/min
Gasoline engine idle speed2800±200 r/min
Fuel tank capacity0.65L
Impact system oil40# oil
Overall size680×465×300mm
