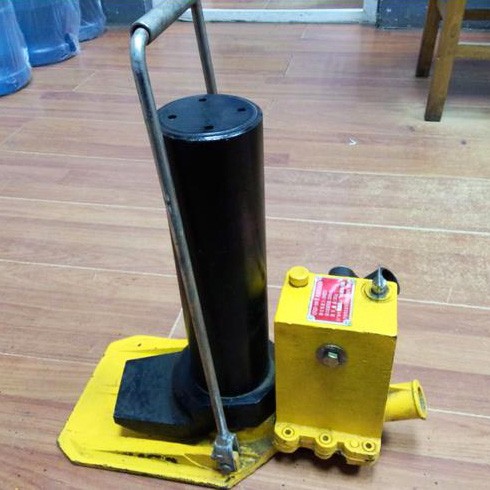

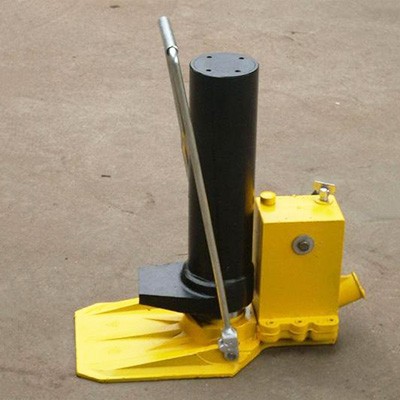

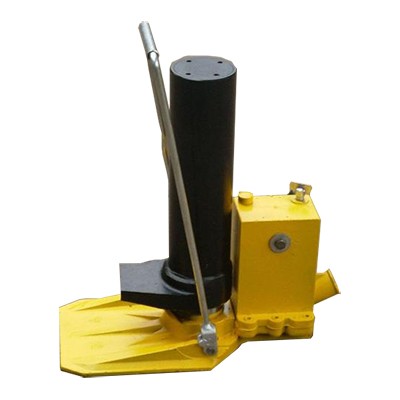

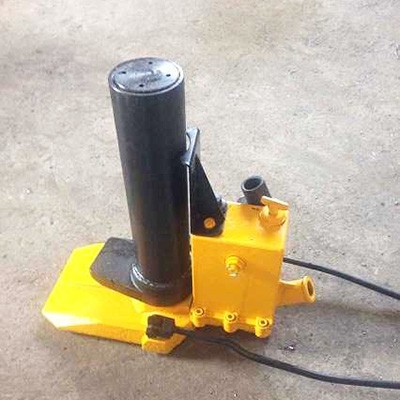

GYQD-196 high stroke hydraulic track lifter

Rated raising force:196 KN
Rated pressure:70 MPa
Maximum track raise height:220 mm
No load lift:24.5mm/once
Whole machine weight:28 kg

Product Description:

Applying Scope

GYQD-196 Type high stroke hydraulic hydraulic track jack (also known as sleeper plate track jack) the maximum lifting force is 196KN, The maximum lifting stroke is 220mm. It is mainly used to raise the sleeper when the cushion sand works in the section of the sleeper plate, Easy to operate, safe and reliable, track raise speed quick, raising of track journey high other characteristics. It can also be used install elevate turnout, it is an ideal machine that can replace the rack type track lifter.

Technical Parameter

Rated raising force

196kN

Rated pressure70kN
Maximum track raise height220 mm
No load lift

24.5mm/once

Whole machine weight28kg
Hand shank operation torque

≤444 N.m
