Adjusting stroke：90mm Max. adjusting stroke (adjust controlled connector)：130mm Rated force (Rated oil pressure 34MPa)：80kN Handle control force：200~270N Total weight (not including the move bar)：10.5kg

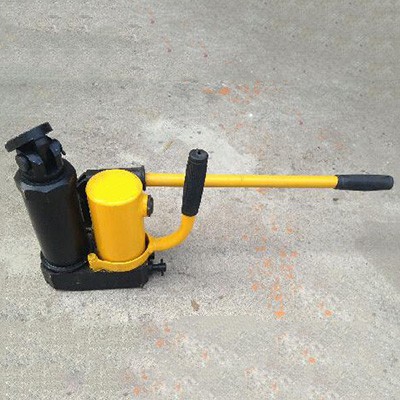

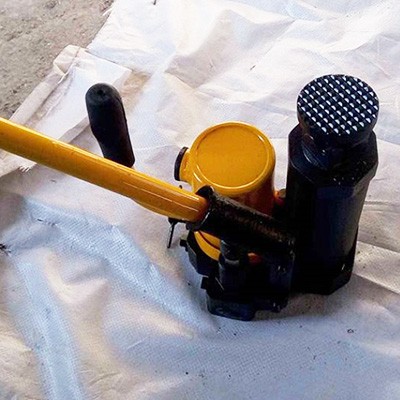

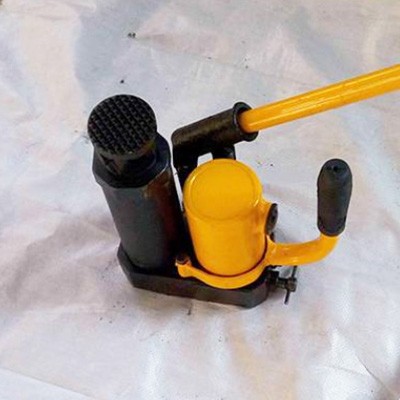

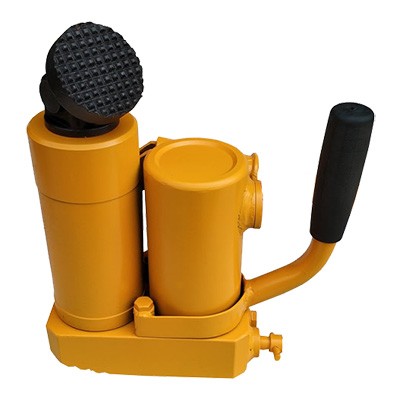

YFZ-80 type hydraulic railway sleeper squarer device is suitable for adjusting the distance of sleeper and angle of the founder in railway line, can be used in various types of railway lines It adopts hydraulic jack structure, has the advantages of low labor intensity. high work efficiency,time saving,portable, safe and reliable characteristics.
| Adjusting stroke | 90mm |
| Max. adjusting stroke (adjust controlled connector) | 130mm |
| Rated force (Rated oil pressure 34MPa) | 80kN |
| Handle control force | 200~270N |
| Total weight (not including the move bar) | 10.5kg |
| Dimension | 275×22×233mm |
