main shaft rev.：512r/min max. loosening torque：≥300N·m max. fastening torque：≥150 N·m working efficiency：≤10 pieces per minute

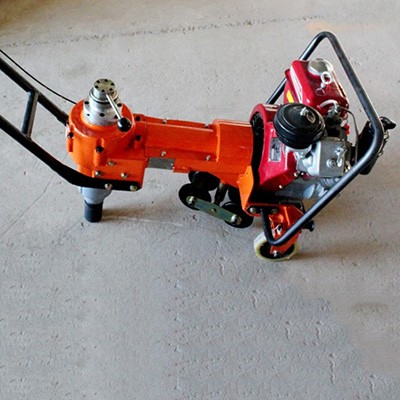

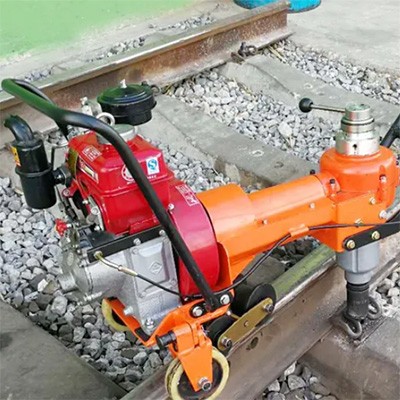

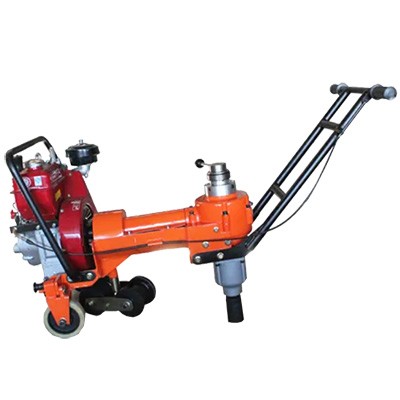

NLB-300 is suitable for loosening & fastening the tie bolt & nut of railway track. With features of powerful impact force integrated opềrating and system, it can supply the demand of the locking torque to fasten the rail fastenings conveniently and quickly. It adopts rotary wheels at the base. Therefore, it's suitable for traveling on land as well as on rail with good mobility. It's an ideal special tool to loosen & fasten the tie bolt & nut replacing the heavy manual labor.The characteristics of the diesel engine are low fault rate, convenient maintenance and long service life.
| main shaft rev. | 512r/min |
| max. loosening torque | ≥300N·m |
| max. fastening torque | ≥150 N·m |
| working efficiency | ≤10 pieces per minute |
| engine | |
| (1) diesel model | Small Swan N60 |
| (2) rated power | 1.47KW(2HP) |
| (3) rated speed | 2600r/min |
| weight | 68kg |
the dimensio | 1300×510×760mm |
