TQHP-Il Type hydraulic switch laying unit

Fuel consumption rate:310g/kW.h
Lubricating oil capacity:1.12L
Single cylinder lifting force:131.8kN
Single cylinder pulling force:93kN
Hand pump operating force:350N

Product Description:

Applying Scope

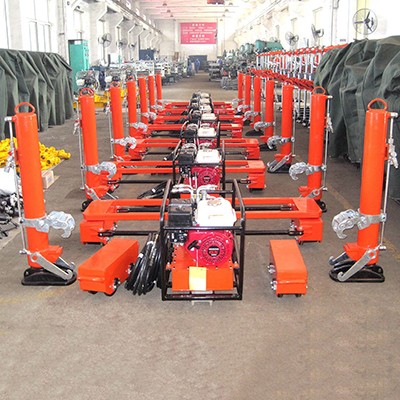

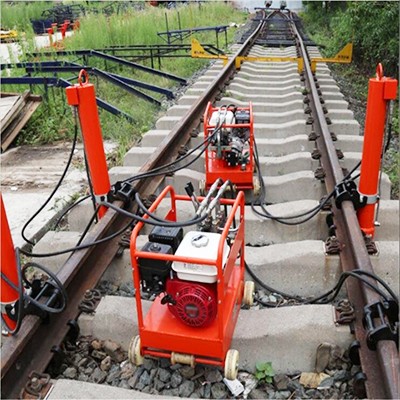

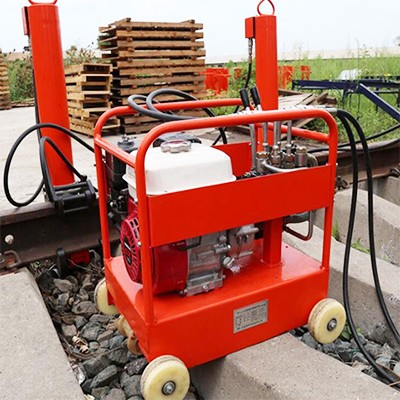

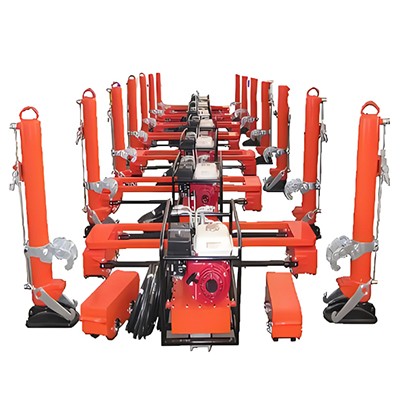

TQHP-Il hydraulic switch laying unit adopts the separation structure of starting oil cylinder and pumping station, and the pumping station and starting oil are connected by tubing and quick change joint, which is convenient for manual handling. It can be used for lifting or landing of single switch, multiple switch,cross crossing switch, combined switch and other ordinary switch, speed increase switch and high speed switch.

Technical Parameter

Power

GX270 gasoline engine (Each pump station drives 4 starting oil cylinders)

GX200 gasoline engine (2 Starting cylinders per pump station)

Power

5.1kW(Each pump station drives 4 starting oil cylinders)

4.8kW(2 Starting cylinders per pump station

Fuel consumption rate

310g/kW.h

Lubricating oil capacity1.12L
Single cylinder lifting force131.8kN
Single cylinder pulling force93kN
Hand pump operating force350N
Maximum starting force

2100kN (16 starting oil cylinders)

1845kN (14 starting oil cylinders

Maximum starting height500mm/650mm/800mm
Single cylinder weight (including hydraulic oil)80kg/88kg/111kg
Single cylinder weight (including hydraulic oil)

≤115kg(each pump station drives 4 starting oil cylinders)

≤85kg(each pump station drives 2 starting oil cylinders)
Rated working pressure16.8MPa
Working flow20L/min
Hand pump flow75mL/ one reciprocation
