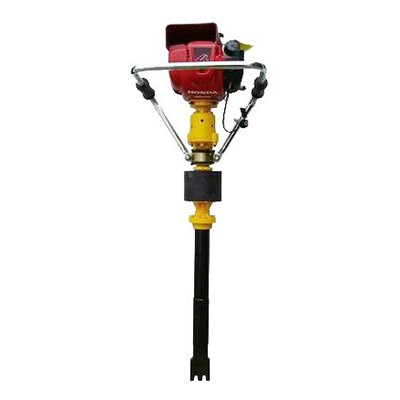

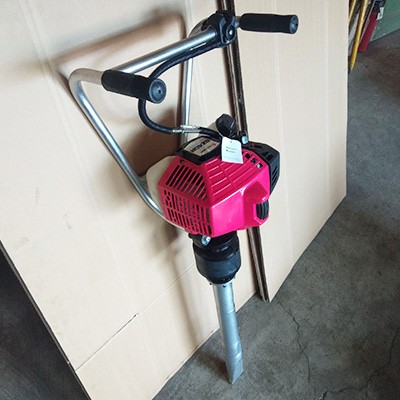

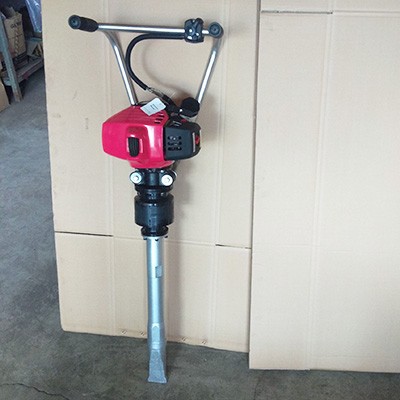

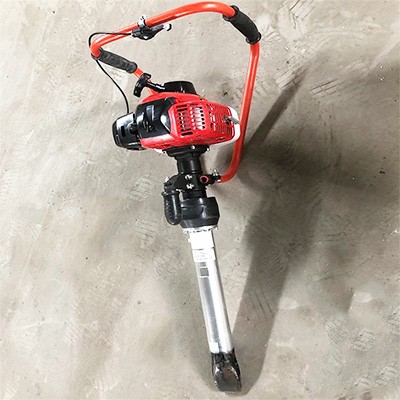

ND-5L Type Internal combustion tamping pick

Impetus:G5LS two stroke gasoline engin
Rate of work:2.22kW
Displacement:50.2cc
Rated speed:8000±300r/min
Vibration acceleration:800m/s 2-1200m/s

Product Description:

Applying Scope

ND-5L Type Intemalpcombustion tamping pick has large vibration force, good tamping effect and other characteristics, it can not only moet the tamping nedus of clear ballast ballast but also meet the tamping needs of board ballast, at the same time,it can minimize the damage of tamping operation to ballastal stone.

· High operating efficiency: Full ballast ballast bed inserted 1-2 times can achieve the ideal tamping effect;

· Good shock absorption effect: Adopt ergonomic three - level shock absorption design scheme,improve operator comfort;

· Convenient maintenance: The intemal drive shaft assembly can be pulled out simply by loosening the 4 nuts of the pick body:

· Sleeve pick: Pick is sleeve type and inlaid with alloy, long service life, easy to replace.

Technical Parameter

ImpetusG5LS two stroke gasoline engin
Rate of work2.22kW
Displacement50.2cc
Rated speed8000±300r/min
Vibration acceleration800m/s 2-1200m/s
Vibration frequency128~138HZ
Non-loading exciting force
5.5KN
Load excitation force3.6KN
Insertion depthundersleeper 120mm-200m
Complete machine qualit≦19.5kg
Boundary dimension1077mm×448mm×362mm
