main shaft rev.：780r/min max. loosening torque：≥300N·m max. fastening torque：≥150 N·m working efficiency：≤10 pieces per minute

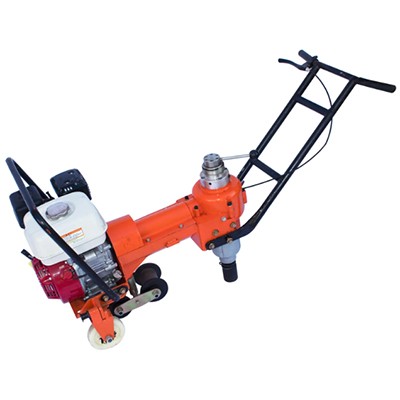

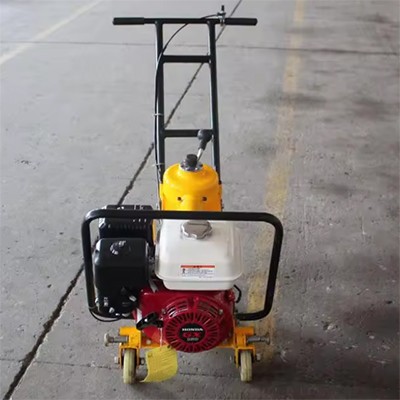

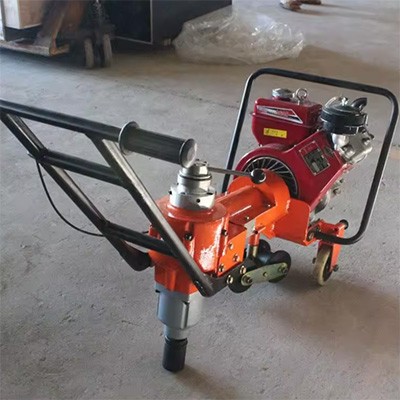

It"s suitable for loosening & fastening the tie bolt & nut of railway track.With features of powerful impact force and integrated operating system, it can supply the demand of the locking torque to fasten the rail fastenings conveniently and quickly. It adopts a traveling unit with 4 rotary wheels at the base. Therefore, it's suitable for traveling on land as well as on rail with
good mobility. It's an ideal special tool to loosen & fasten the tie bolt & nut replacing the heavy manual labor.
| main shaft rev. | 780r/min |
| max. loosening torque | ≥300N·m |
| max. fastening torque | ≥150 N·m |
| working efficiency | ≤10 pieces per minute |
| petrol engine | |
| (1) model | GX160 |
| (2) rated power | 4.0Kw |
| (3) rated rev. | 3600r/min |
| weight | 60kg |
the dimensio | 1300×510×760mm |
