Rated track raising force：250kN Maximum track raising quantity：120mm Hydraulic system working pressure：60MPa Pressure handle maximum operating force：(L=1150mm) 432N Overall quality：27kg Outline size：400mm×180mm×465mm

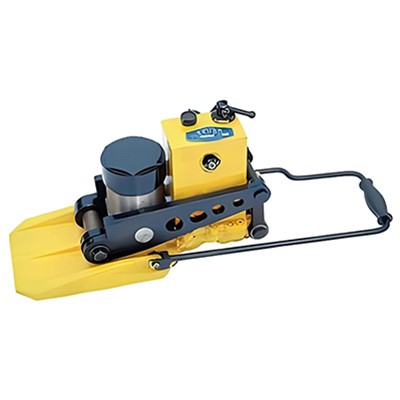

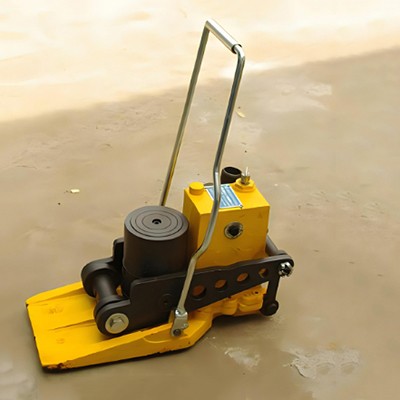

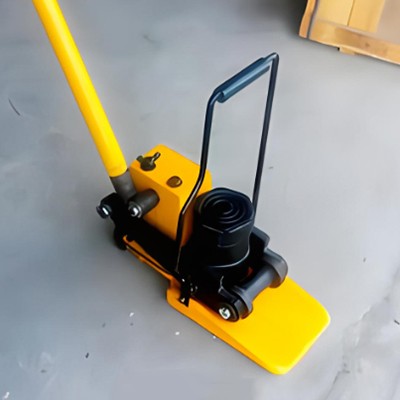

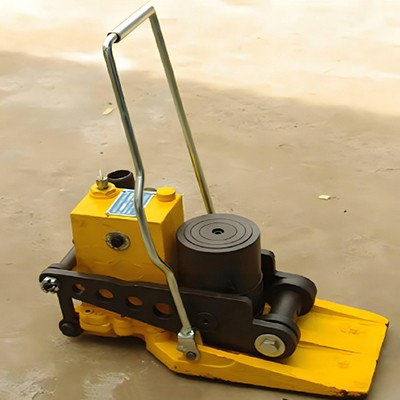

YQ-250 hydraulic track starter is suitable for all types of rail lines for track starting operations,it has a novel structure. easy to operate. safe and reliable. no trespassing limits. high work efficiency. light machine weight other characteristics. It has two functions; when the rail is low, be placed on the lifting lever plate; carry 150kN weight. At high position hour, put on top of the hydraulic cylinder;carry weight 199kN. The operation is started simultaneously.
| Rated track raising force | 250kN |
| Maximum track raising quantity | 120kN |
| Hydraulic system working pressure | 60Mpa |
| LPressure handle maximum operating force | (L=1150mm) 432N |
| Overall quality | 27kg |
| Outline size | 400mm×180mm×465mm |
