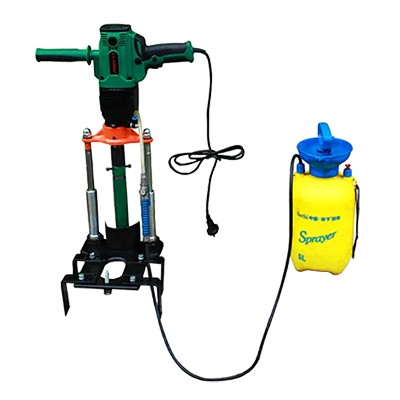

LQ-45 Electric concrete drilling machine

Motor power:2.3kW
Voltage:220V
Motor speed:0 ~ 1200r/min
Maximum drilling diameter:45mm
Rated frequency:50Hz

Product Description:

Applying Scope

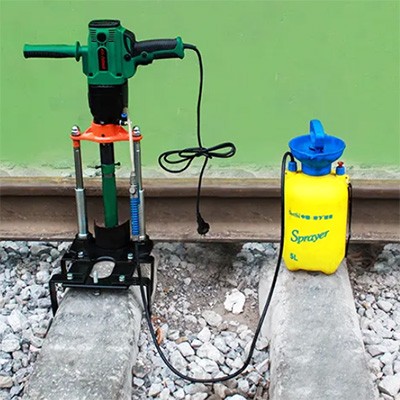

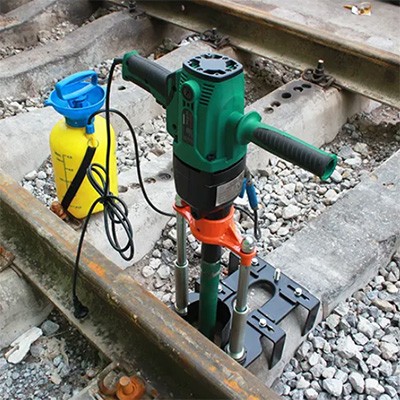

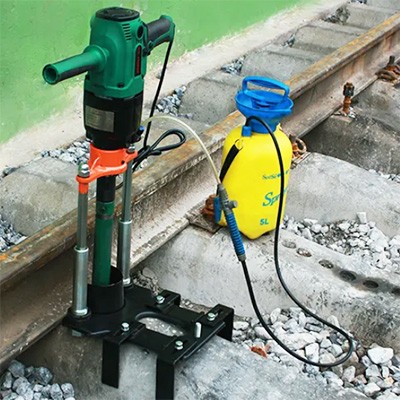

LQ-45 electric concrete drilling machine is suitable for drilling of various types of concrete sleeper bolts under the condition of blocked lines. The sleeper bolts anchored on the concrete sleeper can be removed by using the principle of a blanket knife without damaging the concrete sleeper. At the same time, after removing the bolts, the sleeper bolts can be re-anchored in the drilled holes.

The machine adopts the host and fixture separate way, has the characteristics of fast down the track,in the operation if need to down thie track, you can loosen the fixture and the host fixing bolts, the host in a safe place, and the fixture does not move, after the train passes, and then the host is installed, can continue to drill. It improves the work efficiency, reduces the labor intensity of workers, and is an essential tool for line laying and maintenance.

Technical Parameter

Motor power2.3kW
Voltage220V
Motor speed0 ~ 1200r/min
Maximum drilling diameter45mm
Rated frequency50Hz
Drill typeDiamond engineering thin wall drill φ40mm×260mm
Travel200mm
Drilling time≤50s
The whole machine quality13kg
