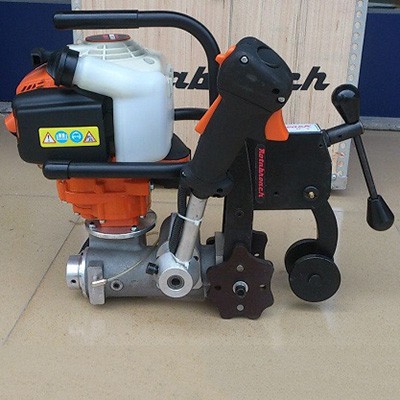

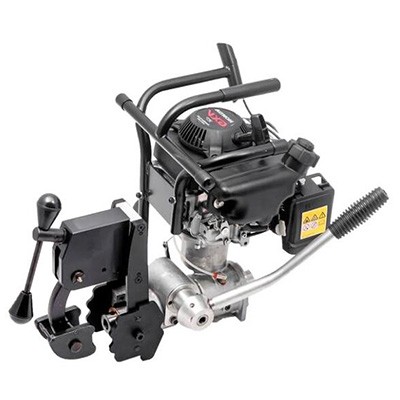

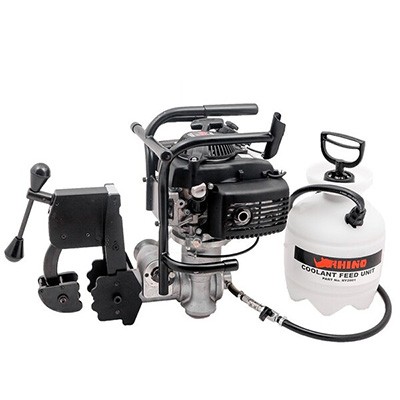

Rotabroach Rotabrook RD-07 drilling machine

Internal Combustion engine:Honda GXV57 (four stroke)
Oil discharge/power:57.3 cubic cm /1.4 kW
Internal combustion engine speed:4000rpm
Load torque:3.2Nm
Fuel tank capacity:0.3L

Product Description:

Applying Scope

In 1996, the British Rotabroach company produced railway hollow drilling machine. Now after several changes, two kinds of rail drilling machines RD07A and RD074 have been established, greatly improving the efficiency and accuracy of rail drilling. With KOPAL multiplier holding system, the combination of worm gear and worm has more than or equal to 10 times the increase in holding force, and the worm has to prevent reverse loosening when tightened to ensure that the drilling is tightened.

Technical Parameter

Internal Combustion engineHonda GXV57 (four stroke)
Oil discharge/power57.3 cubic cm /1.4 kW
Internal combustion engine speed4000rpm
Load torque3.2Nm
Fuel tank capacity0.3L
Spindle speed320rpm(no load); 300rpm(full load)
Applicable aperture9mm-40mm
Compression ratio15:1
Machine size540×420×420mm
Net weight19.8kg
