Model:CJY1.5/6.7.9 Rail gauge: 600mm, 762mm,900mm Speed controller: IGBT Min. Turning Radius:5M

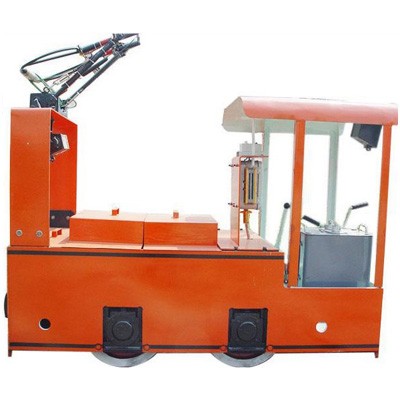

CJY1.5/6.7.9 Mining electric Locomotives
The locomotive is a new product specially designed for large mines.
it applies IGBT speed control way so smooth starting and low failure rate,
and is anew-generation energy efficient product.
The model has four options: normal type, thicken lateral plate type, added sails type and two- motorstype.
The working rated voltages include 250V.
Main features include:
short wheel base and highstiffness of vehicle body.
With application of new-typebuffer, the shockproof performance is good with big cushion angle.
small outer dimensions,short wheelbase,smallturn radius, high speed and strong traction force.
V-shape rubber damps are used on this locomotive inorder to bear vibration and impact from lengthways,vertical and transverse directions
The sails are elasticrubber plates which can ensure a reduced shock inoperation.
Model Name | CJY1.5/6, 7, 9G |
Adhesive Weight | 1.5 tons |
Track Gauge | 600, 762 or 900mm |
Traction | 2.55 kN 3.24kN |
Max. Traction | 3.68kN |
Speed | 4.54 km/h 6.6km/h |
DC Voltage | 250V |
Power | 3.5kW*1 6.5kW*1 |
Controller | Resistance, IGBT |
Brake Mode | Mechanical Brake |
