Rated on the force：294kN Rated track pulling force：173kN Max. lifting power：120mm Max. lining powèr：80mm System pressure rating：55Mpa

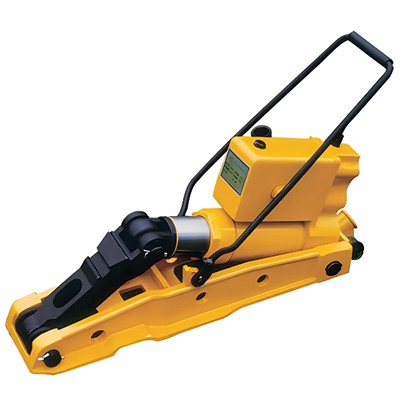

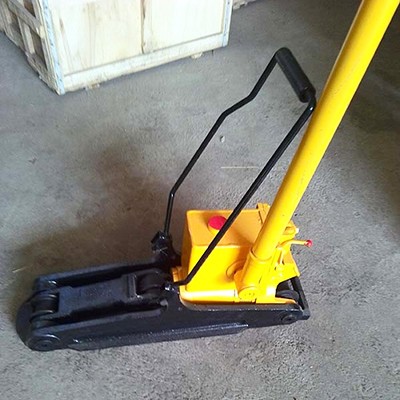

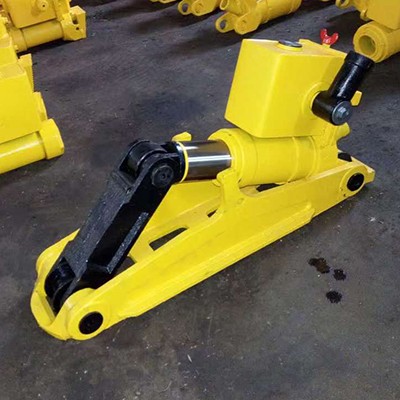

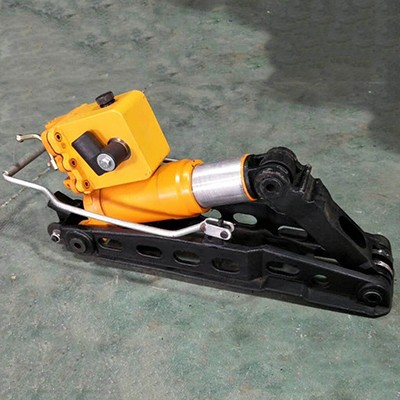

YQB-294×173 Type Hydraulic Rail Lifting& Lining Machine is suitable for various kinds of rail lifting and lining operation, it has the advantages of novel structure,convenient operation, safe and reliable, not invade the threshold, high efficiency. light weight, etc. It also can be appled to the rail tumout's lifting and lining operation, It is indispensable tool for ralway maintenance dapartment.
| Rated on the force | 294kN |
| Rated track pulling force | 173kN |
| Max. lifting power | 120mm |
| Max. lining powèr | 80mm |
| System pressure rating | 55Mpa |
| No-load efficiency | 4mm/once |
| Hand shank operating moment | 560N.m |
| Weight | 27kg |
| Size | 530mm×150mm×251mm |
