Product

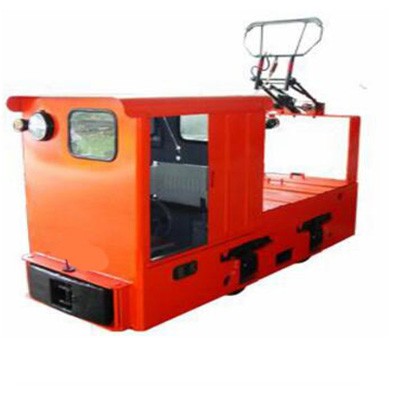

3T trolley type Mining locomotives

Model:CJY3/6.7.9
Rail gauge: 600mm, 762mm,900mm
Speed controller: IGBT/Various speed

Product Description:


CJY3/6.7.9 Mining electric Locomotives

The locomotive is a new product specially designed for large mines.

it applies IGBT speed control way so smooth starting and low failure rate,

and is anew-generation energy efficient product.

The model has four options: normal type, thicken lateral plate type, added sails type and two- motorstype.

The working rated voltages include 250V and550V.

Main features include:

  • short wheel base and highstiffness of vehicle body.

  • With application of new-typebuffer, the shockproof performance is good with big cushion angle.

  • small outer dimensions,short wheelbase,smallturn radius, high speed and strong traction force.

  • V-shape rubber damps are used on this locomotive inorder to bear vibration and impact from lengthways,vertical and transverse directions

  • The sails are elasticrubber plates which can ensure a reduced shock inoperation.


Model NameCJY3/6, 7, 9G
Adhesive Weight 3 tons
Track Gauge600, 762 or 900mm
Traction6.1kN       5.74kN
Max. Traction7.36kN
Speed10.6km/h
DC Voltage 250V
Power12kW*2        6.5kW*2
ControllerResistance, IGBT
Brake Mode Mechanical Brake

Locomotive components.JPG
