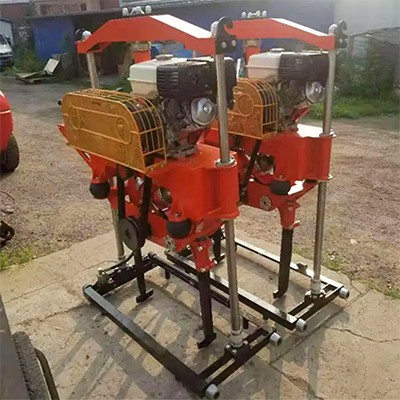

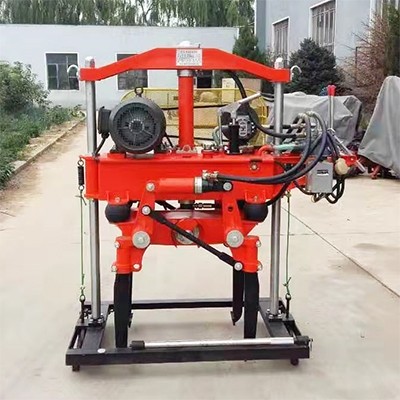

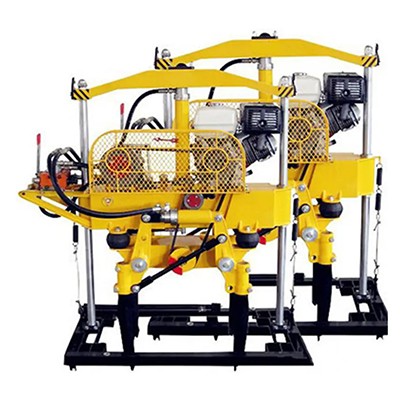

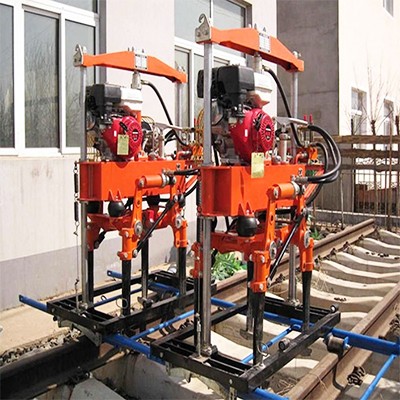

YCD-22 Type Hydraulic Turriout Tamping Machine

YCD-22 Type Hydraulic Turriout Tamping Machine

Engine Power：9.5 kw(Honda G×390)
Vibrating frequecy：66.7Hz
Exciting force：31.5kN
Working system pressure：4~5.5Mpa
Machine weight：280kg

Product Description:

Applying Scope

It's suitable for tamping the most complicated and difficult track section-tumout, It can be employed to tamp the turnout switch, tumout connecting part, frog and guard rail part, I's sgple and convenient in operation, light in weight, high efficient in working. low failure rate, It's an ideal tool to be used in tumout tamping operation.

Technical Parameter

Engine Power	9.5 kw(Honda G×390)
Vibrating frequecy	66.7Hz
Exciting force	31.5kN
Working system pressure	4~5.5Mpa
Tamping tine inserting depth	beneath the sleeper 90-100m
Machine weight	280kg
Dimension	885mm×800mm×1680mm
Production efficiency	30min/one group of turnout/one group of machine
