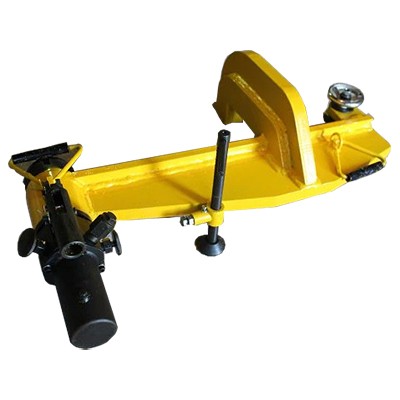

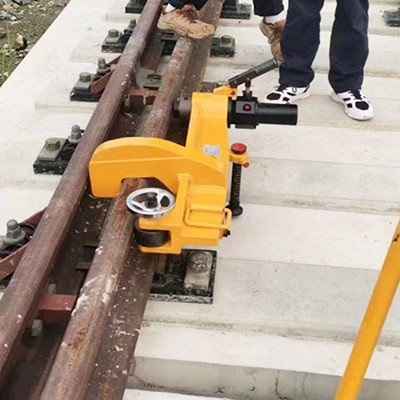

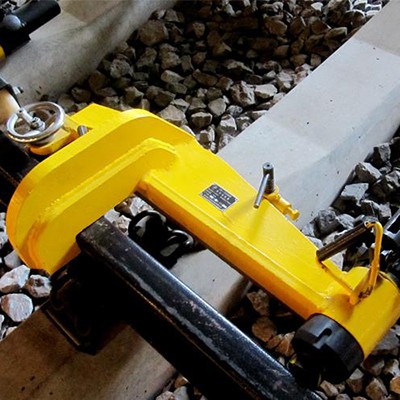

YZG-750III Type hydraulic rail straight bender

The largest rail straightening force:750KN
Rated straight force:640KN
System rated pressure:60MPa
The piston stroke:70×70mm

Product Description:

Applying Scope

Hydraulic rail straight bender is 75 kg/m on the lines below various horizontal rail type manual hydraulic straightening (or bend) special tools.The body uses special steel welded together ,reliable performance , compact structure, light weight, easy to tear open outfit.

Technical Parameter

The largest rail straightening force

750KN

Rated straight force

640KN

System rated pressure

60MPa

The piston stroke

70×70mm

Plunger pump diameterxstroke

Φ14×40

Light efficiency

1.6mm/time

Total weight

80kg

Dimensions

850×520×240mm
