Span of running wheel：1000mm Hand wheel feed accuracy：0.125mm Handwheel feed per revolution：2.5mm Machine weigrit：55kg Dimensions：1410×500×850mm

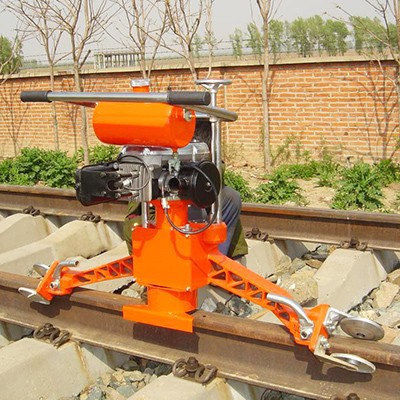

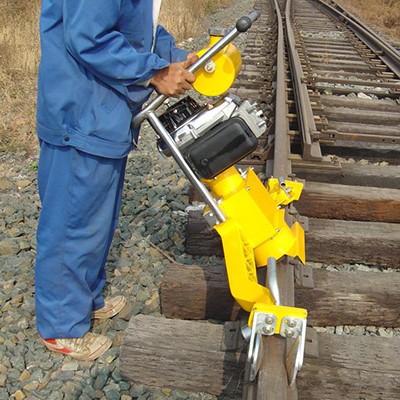

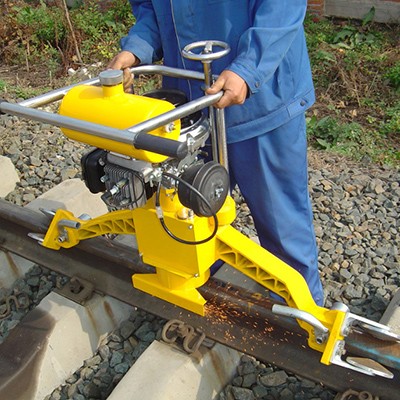

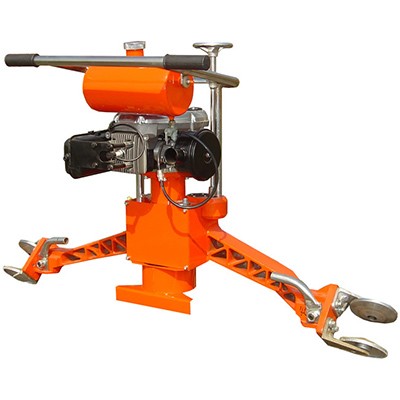

NGM-6.0 internal combustion rail grinding machine is a special machine for grinding the top surface, side and arc part of the rail, suitable for 50 ~ 75 kg/m rail weld, uneven joint, rail side flash, rail surface welding and other parts of the contour grinding. It has the advantages of high working efficiency, good grinding quality, simple operation, convenient access and so on.
| Gasoline engine | single-cylinder air-cooled two-stroke, power: 6.0kw |
| Grinding wheel speed | 4100r.p.m |
| Grinding wheel specifications | cylindrical diameter of 150× 55×70 |
| Allowable line speed of grinding wheel | not less than 32m/s (or speed not less than 4100r/min |
| Tank capacity | 4.5L |
| Span of running wheel | 1000mm |
| Hand wheel feed accuracy | 0.125mm |
| Handwheel feed per revolution | 2.5mm |
| Machine weight | 55kg |
| Dimensions | 1410×500×850mm |
