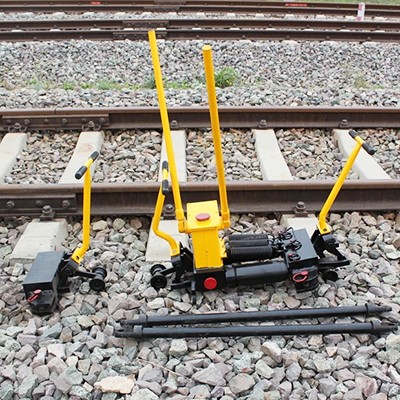

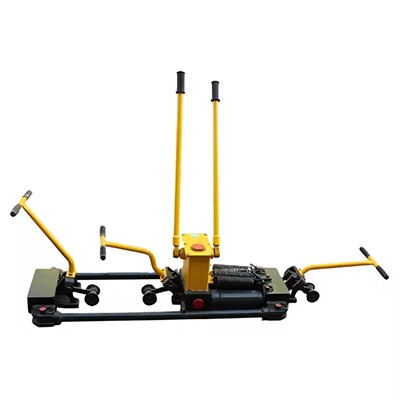

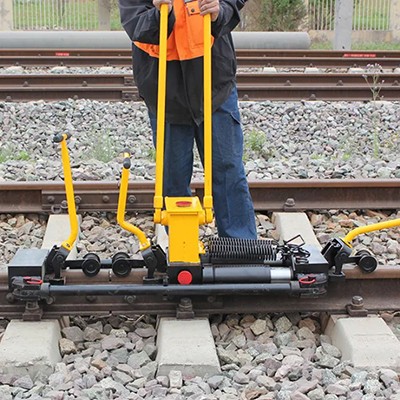

YTF-400II Type bi-directional hydraulic rail gap regulator

YTF-400II Type bi-directional hydraulic rail gap regulator

Rated rail pulling and pushing force：400kN
Oil cylinder piston operating stroke：140mm
Rated pressure：52MPa
No-loading efficiency：≥ 2.0mm /time

Product Description:

Applying Scope

It's suitable for rail gap adjusting operation on various rail track. It has two types-push and increase rail gap, and pull and decrease rail gap. It's simple and convenient in manipulation, high efficient in operation. It has "stuck" preventing function, and is safe in operation.

Technical Parameter

Rated rail pulling and pushing force	400kN
Oil cylinder piston operating stroke	140mm
Rated pressure	52MPa
No-loading efficiency	≥ 2.0mm /time
Handle operating torque	≤450N·m
Machine weight(No hydraulic oil)	≤133kg
