mode：GX200 power：4.8kW rpm：3600r/min overall size：2900×850×1000mm machine weight：114kg

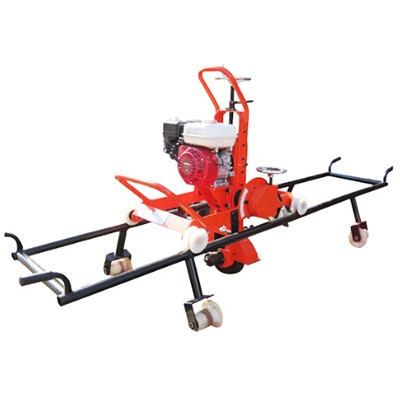

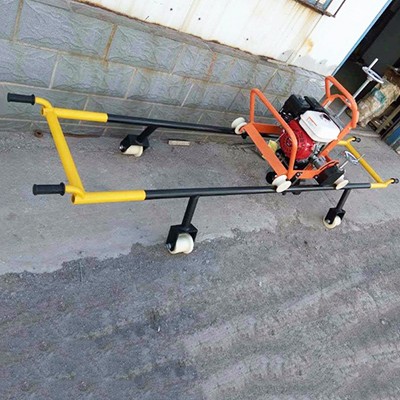

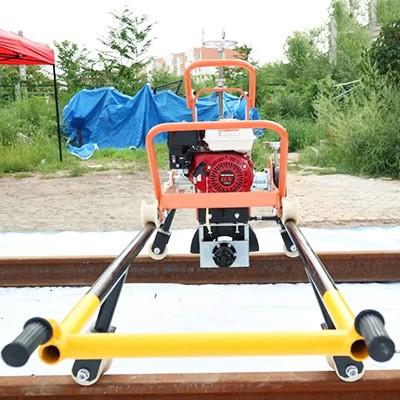

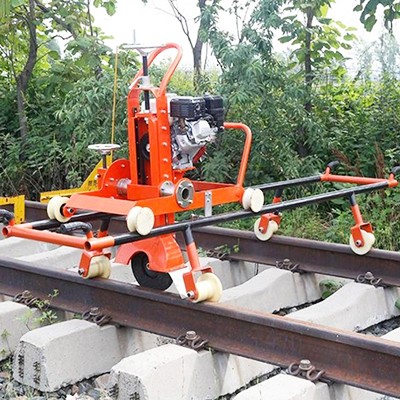

It's mainly used to grind switch point rail, frog point rail, wing rail top surface and side face fatty edge as well as top surface and side face fatty edge of various kind of rail.Due to its superior performance, rational construction, reliable quality, time and labour saving, it's an indispensable tool used in track maintenance operation.
| petrol engine | |
| mode | GX200 |
| power | 4.8kW |
| rpm | 3600r/min |
| general flat grinding wheel | |
| specification | Φ250×Φ32×3 |
| Max.grinding linear velocity | 60 m/s |
| grinding vertical stroke | 170mm |
| grinding wheel position adjustable angle(tilt angle) | 30 |
| overall size | 2900×850×1000mm |
| machine weight | 114kg |
