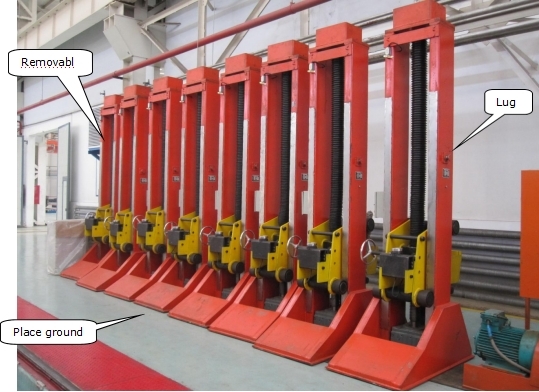

Train Locomotive lift machine




Product Description:


Electric Train Lift frame unrestricted models, you can lift various types of vehicles, maintenance capabilities greatly improve hybrid vehicles. Suitable for railway locomotives, subway cars, EMU, sheds trucks, flat trucks, large-scale railway maintenance machinery, all kinds of vehicles.

Feature:

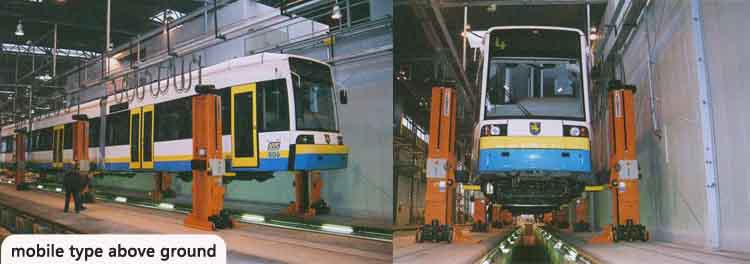

lEach holder by the mobile machine four mobile train lift. Work, four mobile train lift work simultaneously

lEquipment has always console, each frame has a stand-alone control train lift control box two. The total console or end of four two vehicle train lift frame synchronization; single control box single gantry lifting machines or the whole car trip.

lPerfect synchronization control and security measures. Single synchronous control precision is set to 2 ~ 8mm.

lTwo console located emergency stop sound and light alarm, when he was a stand-alone emergency stop button is pressed, all working together all at the same time  frame train lift downtime.

lHead end self lock system, when the head body contact ,it will automatically stopped rising.

lHas a nut wear detection alarm device, an alarm signal when a primary nut wear reaches the set amount.

lHas a shelf train lift vertical indicating device, indicating no vertical train lift column per meter, has a red-yellow-green signs warning area to guide the operator safety cage car operations.


Model

ELM-12

ELM-15

ELM-20

ELM-25

ELM-30

ELM35

DJY-40

Single lift capacity

12T

15T

20T

25T

30T

35T

40T

Total lift capacity

48T

60T

80T

100T

120T

140T

160T

Max. raised height above floor

13001700 according to user needs

18002200 according to user needs

Mm

350

350

400

400

450

450

450

Min. raised height above floor

650950 according to user needs

Asked

650

650

700

700

750

750

750

Lifting

160300mm/min according to user needs

Stroke

28mm  can be set

Travel

412mm can be set

Stroke

0.5mm or 1.0mm

Head

13mm

Noise

≤70dBA

Power

: three-phase AC 380V±10% 50Hz

Operating Voltage

AC480V±10%, 3PH, 60Hz/AC 380V±10% 3PH, 50Hz

Control Voltage

AC230V, 60Hz, 24 V DC/AC 220V,50Hz, 24 V DC

Protection level

IP55 up to IP65

Drive

2.2×4

2.2×4

3×4

4×4

5.5×4

7.5×4

7.5×4

Dimensions

1.2×0.7

×2.6

1.2×0.7×

2.6

1.3×0.8×

2.8

1.4×0.8×

3.2

1.4×0.9×

3.4

1.4×1.0×

3.4

1.4×1.1×

3.4

Weight

900×4

1200×4

1500×4

1800×4

2000×4

2000×4

2400×4

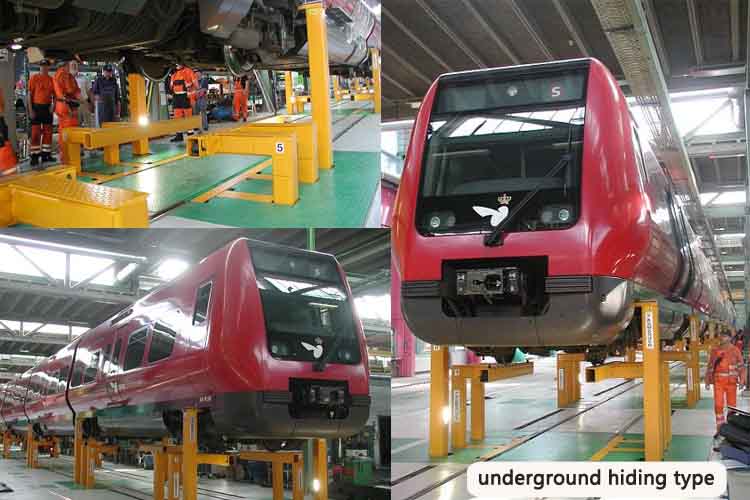

hiding type.jpg
