Motor：380V Power：4.0kW Speed：2880r/min The whole machine quality：65kg

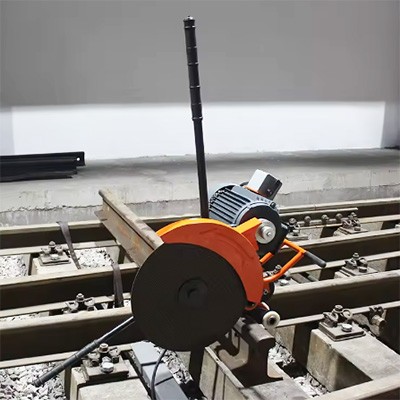

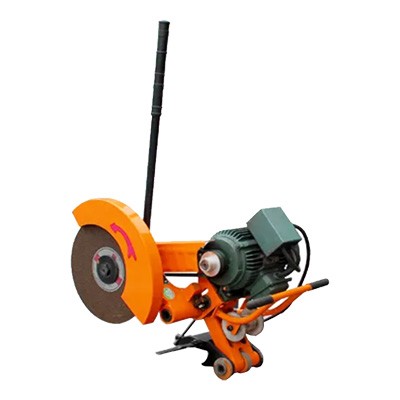

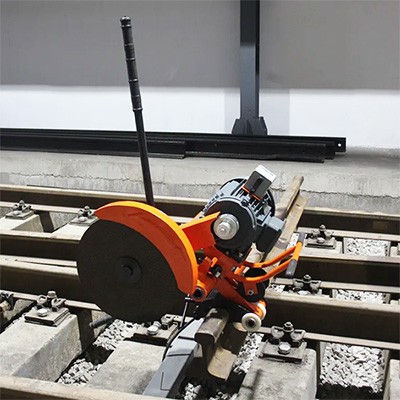

QG-4 IⅡI electric rail sawing machine is suitable for cutting 43 kg/m ~ 75 kg/m rail, cutting section quality meets the requirements of railway industry standards. Railway works department line overhaul, maintenance and emergency repair operations necessary equipment. It has the characteristics of fast cutting spead, high utilization rate of wafer grinding wheel,high cutting section quality, simple operation, easy to move, safe use, wide application range and so on.
| Motor | 380V |
| Power | 4.0kW |
| Speed | 2880r/min |
| Wafer grinding wheel (spindle) | |
| Spindle speed | 3060r/min |
| Specification | Φ400×中32×4 |
| Cutting time | 60kg/m rail, ≤120S |
| The use of wafer grinding wheel | 50kg/m Use 24 times 60kg/m Use 23 times |
| The whole machine quality | 65kg |
