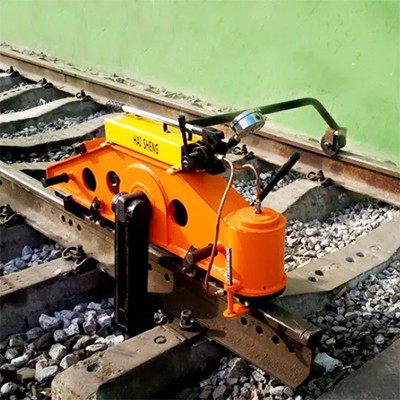

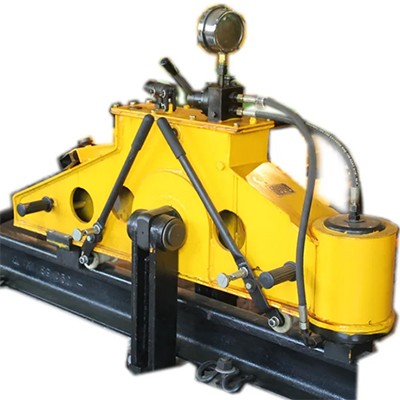

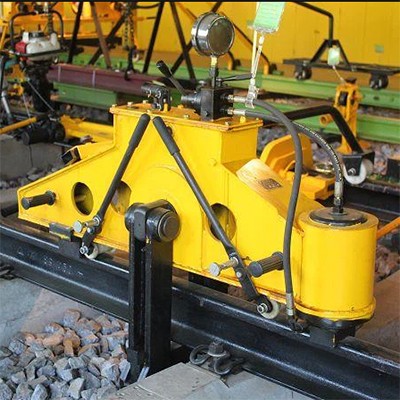

YZG-1000 Type hydraulic rail straightening machine

Maximum Vertical force:1100kN
Rated Vertical rail force:1000kN
Maximum working pressure:52MPa
No-loading efficiency:1.55mm
Adjust the fulcrumh(top) range:±100mm

Product Description:

Applying Scope

It's suitable for cwr stress dispersing, long rail relaying operation. While operating in the field at a certain temperature range being lower than the rail lockjng temperature, by employing this machine, the length of a rail with zero-stress can be forced to stretch to a length at locking temperature, then re-lock the rail.

Compared with the other same kind of products, it possesses features of unique design, light weight, simple & convenient manipulation powerful rail pulling force and non-damage of rail working surface.

Technical Parameter

Maximum Vertical force

1100kN

Rated Veyical rail force

1000kN

Maximum working pressure

52MPa

No-loading efficiency

1.55mm

Adjust the fulcrum (top) range

±100mm

Maximum operation force

436kN

Weight

About 190kg

Over size

1200×300×660mm
