Rated thrust (square tie force)：147kN(15t) Maximum square pillow quantity：120mm Cylinder diameter x piston stroke：∅56×120mm Relief valve unloading oil pressure：60MPa

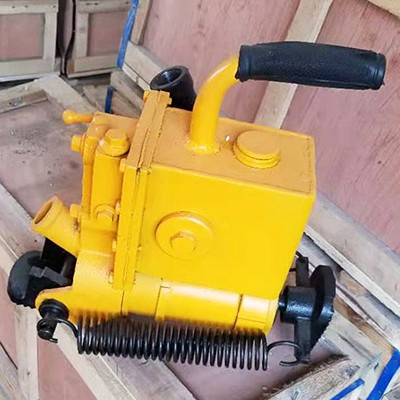

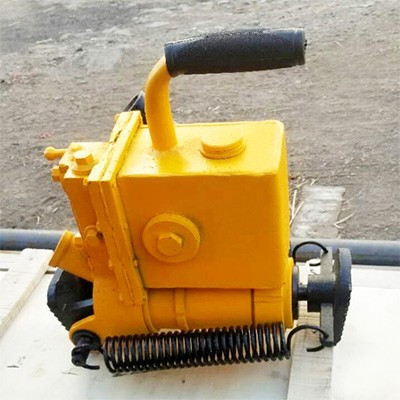

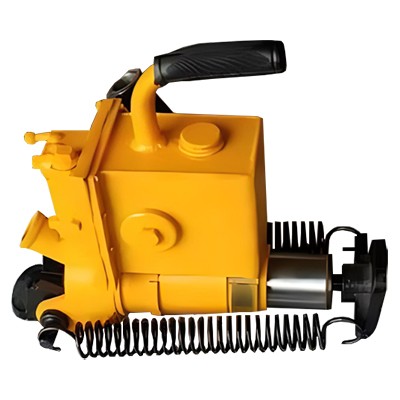

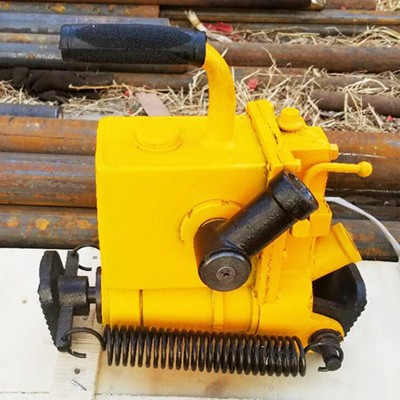

YFZ-147 hydraulic square pillow is a new manual hydraulic square pillow tool suitable for railway line maintenance and maintenance. The machine is used to adjust the spacing of railway line sleepers, promote the balance of the spacing of line sleepers,so that the stress of the track can be reasonably distributed, and prevent the deformation and damage of the rail. The machine is compact in structure, easy to operate,safe and labor-saving in use, and is one of the necessary supporting equipment for railway line maintenance and maintenance. The main parts of the machine can be interchangeable with other road maintenance machines produced by our company,easy to maintain, and on the basis of the original YFZ-l hydraulic square pillow to improve the strength of the square pillow, is to improve the efficiency, reduce the labor intensity of the ideal square pillow tool.
| Rated thrust (square tie force) | 147kN(15t) |
| Maximum square pillow quantity | 120mm |
| Cylinder diameter x piston stroke | ∅56×120mm |
| Manual plunger pump (quantity x diameter x stroke) | ∅2×16×32.5 |
| Relief valve unloading oil pressure | 60MPa |
| Overall dimensions (L × W × H) | 290×135×255mm |
| Machine weight (excluding handle) | 15kg |
