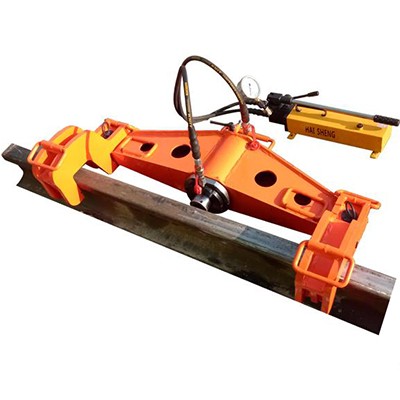

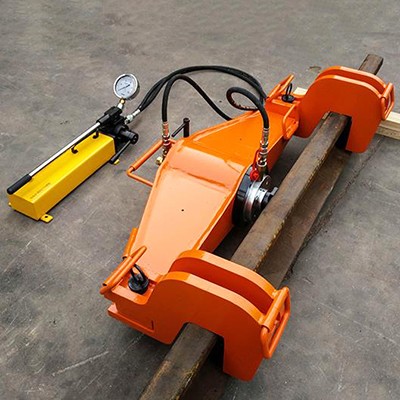

YZG-800 Hydraulic double hook straight rail bender

Rated straight rail force:690kN
The system rated working pressure:55MPa
Working piston stroke:140mm
No-load efficiency:1.6mm/ time

Product Description:

Applying Scope

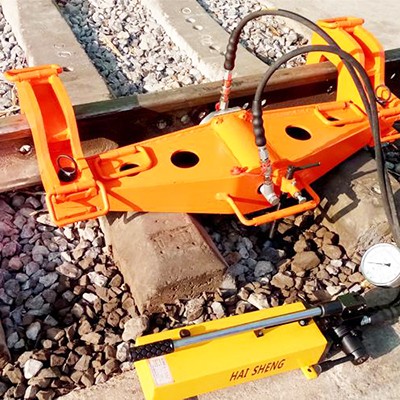

YZG-800 hydraulic double hook straight rail bender is a manual hydraulic special tool for straightening (or bending) the horizontal direction of 43kg/ m-75kg /m rail on the line. The body is welded with special steel, with reliable performance, compact structure, light weight and convenient disassembly.

Technical Parameter

Rated straight rail force

690kN

The system rated working pressure

55MPa

Working piston stroke

140mm

No-load efficiency

1.6mm/ time

The main beam quality

114kg

Hook beam weight

35kg

Pump station

15kg

Other accessories

13kg

Outer dimension

1150×700×400mm
