DG-550*4 Electric Tamping Pick

1.Application

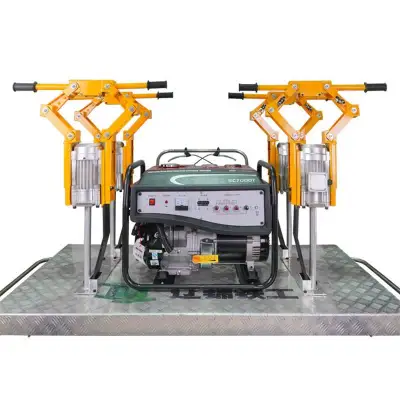

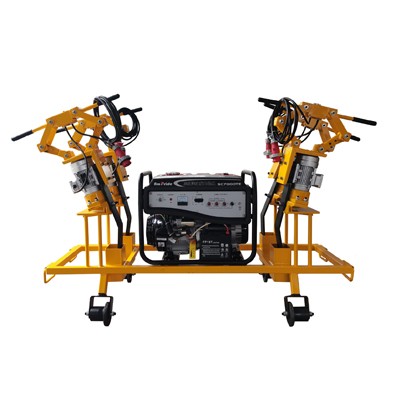

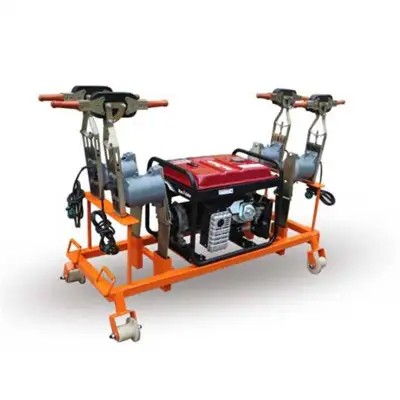

DG-550*4 electric tamping pick for power generation consists of one generator and four electric tamping picks, with one machine serving multiple purposes.DG-550*4 electric tamping pick is suitable for tamping ballast in railway maintenance operations. This machine has high excitation force, high operating efficiency, convenient operation, compact structure, and easy maintenance.

2. Main Parameter

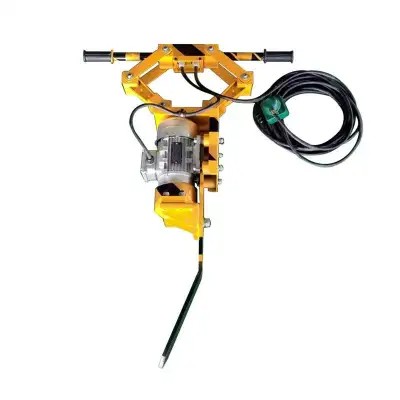

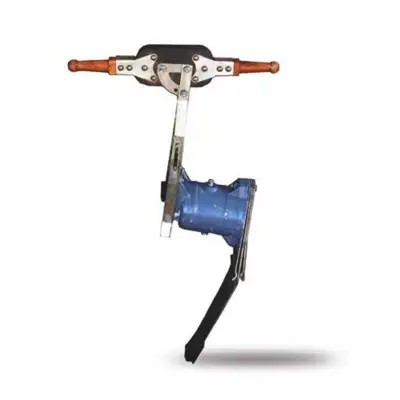

Electric tamping solid pick parameters

Motor

Power:                     550W

Voltage:                   380V

Rotation speed:        2880rpm

2)Excited frequency:     48HZ

3)Excited force:      3kN

4)Pick board form:     elasticity

5) Damping material:     Rubber rod

6)Weight：      26.5kg/set

7) Outline dimension:    1000×690×195mm

Generator parameters

1)Rated power:           6.5KVA

Maximum power:         7.25KVA

Power factor (PF):        0.9

Rated frequency:          50Hz

2)Rated voltage:          230/400V

      Rated current:              9A

3)Fuel tank capacity:            25L

4)Rated speed:             3000rpm

5)Highest altitude:     1000m

6)Maximum ambient temperature:     40℃

7)Weight:              84kg
