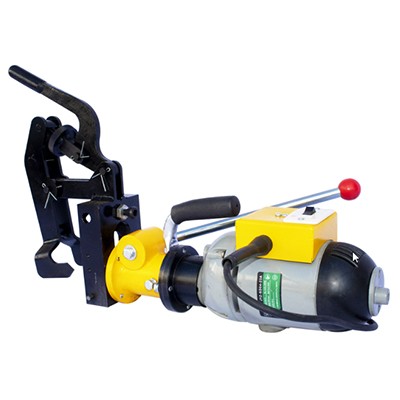

ZG-31 Electric rail drilling machine

Motor power:1.0kW
Rated voltage:220V
No load speed:2400r/min
The whole machine quality:15.5kg
Overall size:600mm×260mm×430mm

Product Description:

Applying Scope

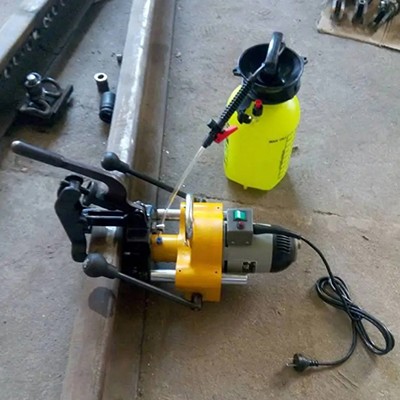

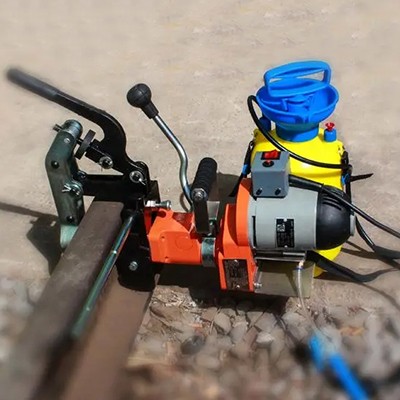

ZG-31 electric rail driling machine is suitable for all kinds of rail drilling operations below 75kg/m. The overall structure is compact, the clamp rail device has self-4ocking function,accurate positioning and high drilling precision. N-tail shank hollow drill or special N-tail shank @9.8-13.5 twist drill,drilling with automatic water supply function, is a necessary tool for maintenance, emergency repair and overhaul operations of the works department.

Technical Parameter

Motor power1.0kW
Rated voltage220V
No load speed2400r/min
Drilling diameter∅9.8mm ~∅36mm
Drilling time≤40s
The whole machine quality15.5kg
Overall size600mm×260mm×430mm
