Gasoline engine：Rated power 1.2kW Drilling diameter：31±0.5mm Rated speed：275±25 r/min Tank capacity：0.8L Dimensions：640×360×365 mm Quality of the whole machine：≦23kg (including fuel)

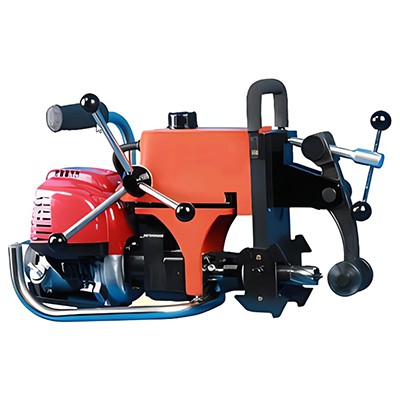

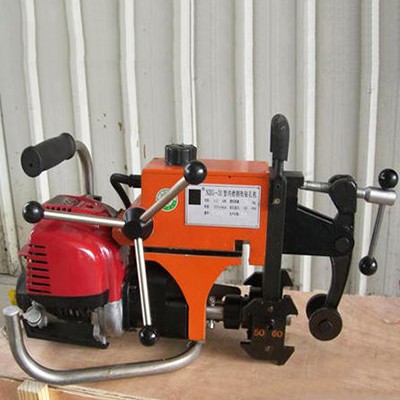

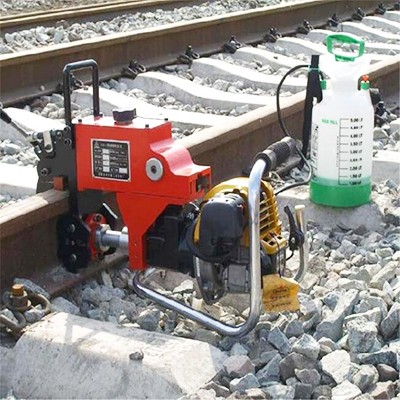

This drilling machine is a new type rail drilling tool for railway. Suitable for 43 ~ 75 kg/m rail drilling, drilling fast, accurate positioning, high drilling precision, easy to operate, easy to carry, safe tp use, is a necessary tool for railway maintenance and emergency repair operations.
| Gasoline engine | Rated power 1.2kW |
| Drilling diameter | 31±0.5mm |
| Rated speed | 275±25 r/min |
| Drilling accuracy | The position tolerance of the hole is not more than 1 mm |
| Drilling time | Drilling time is not more than 40 s |
| Drill life | 40 – 50 holes can be drilled at a time. Under normal wear conditions,Each bit can be trimmed 10 to 20 times |
| Tank capacity | 0.8L |
| Dimensions | 640×360×365 mm |
| Quality of the whole machine | ≤23kg (including fuel) |
