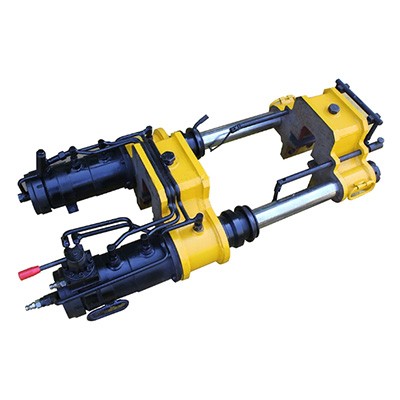

YH-6 Type Rail pressure welding equipment

Max. working stroke:100mm
Max.rated working pressure:35Mpa
Max. working pressure:40Mpa
Deburing unit max.working stroke:120mm

Product Description:

Applying Scope

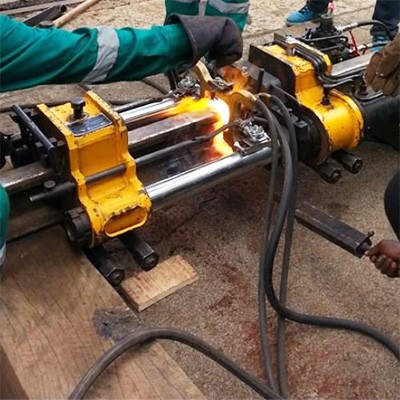

It's used to weld rail. It adopts pressurized deburring mode. The press is rail bottom positioned to ensure the rail head straightness.The press is equipped with upsetting control valve to avoid delaying operation. Compared with the similar product, it features original conception, reasonable design and easy operation.

Technical Parameter

Crimp machine part
Max. working stroke

100mm

Max.rated working pressure

35Mpa

Max. working pressure

40Mpa

Deburing unit max.working stroke

120mm

Deburring unit max.working pressure

45MPa

Deburring unit max.deburring force

452kN

Press weight

230 kg

Press dimention

1320×635×330mm
